3nH Colorimeter 145

3nH Colorimeter NR145
  • Brand      : 3nH
  • Series     : Colorimeter
  • Model      : NR145
  • Price      : Negotiable
  • Stock      : No / On Order
  • Delivery   : Yes
  • Made in    : China

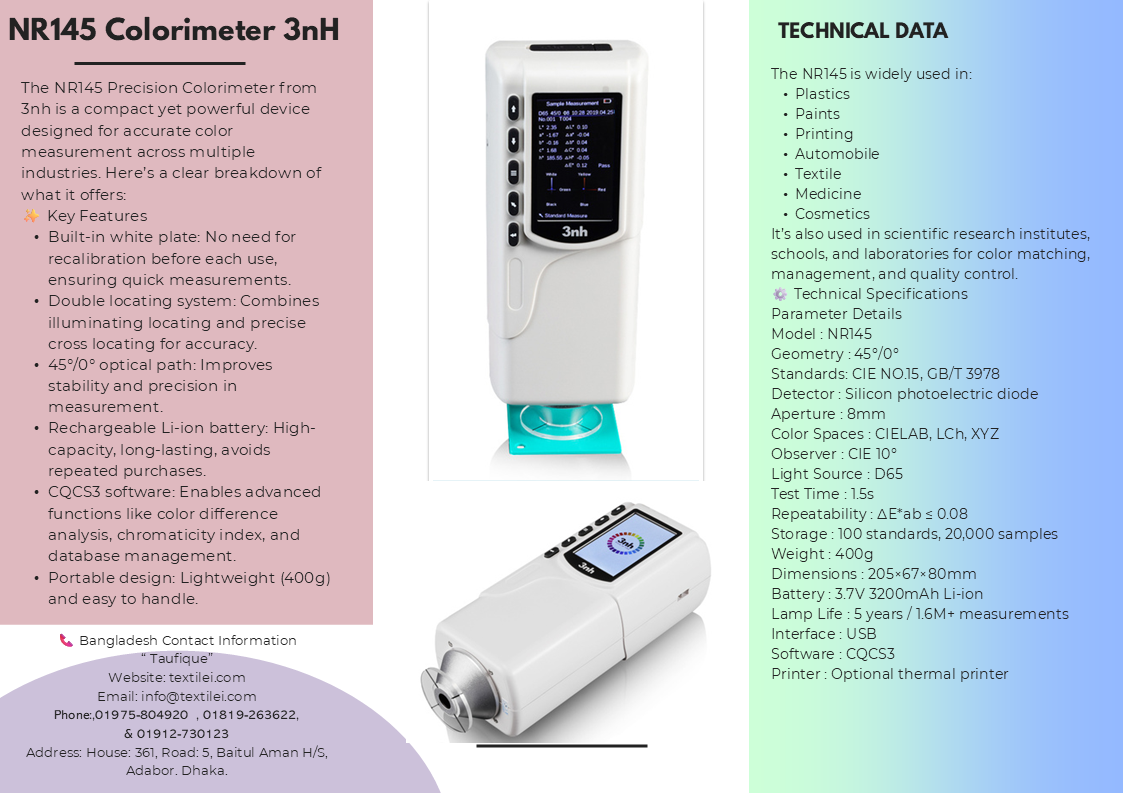

The NR145 Precision Colorimeter from 3nh is a compact yet powerful device designed for accurate color measurement across multiple industries. Here’s a clear breakdown of what it offers:

✨ Key Features

•Built-in white plate: No need for recalibration before each use, ensuring quick measurements.
•Double locating system: Combines illuminating locating and precise cross locating for accuracy.
•45°/0° optical path: Improves stability and precision in measurement.
•Rechargeable Li-ion battery: High-capacity, long-lasting, avoids repeated purchases.
•CQCS3 software: Enables advanced functions like color difference analysis, chromaticity index, and database management.
•Portable design: Lightweight (400g) and easy to handle.


The NR145 is widely used in:

•Plastics
•Paints
•Printing
•Automobile
•Textile
•Medicine
•Cosmetics

It’s also used in scientific research institutes, schools, and laboratories for color matching, management, and quality control.

⚙️ Technical Specifications

Parameter Details

Model : NR145

Geometry : 45°/0°

Standards: CIE NO.15, GB/T 3978

Detector : Silicon photoelectric diode

Aperture : 8mm

Color Spaces : CIELAB, LCh, XYZ

Observer : CIE 10°

Light Source : D65

Test Time : 1.5s

Repeatability : ΔE*ab ≤ 0.08

Storage : 100 standards, 20,000 samples

Weight : 400g

Dimensions : 205×67×80mm

Battery : 3.7V 3200mAh Li-ion

Lamp Life : 5 years / 1.6M+ measurements

Interface : USB

Software : CQCS3

Printer : Optional thermal printer
